IKO® GoldShieldTM | Application Instructions

Know someone who would be interested in this? Let us know and we'll send them details about this page.
*
*
*
Please complete all fields.
Cancel

Send

Thank you! We'll let them know where to find this page.

Okay
IMPORTANT MESSAGE • PLEASE READ! NOTE: Products must be applied properly. IKO assumes no responsibility for leaks or defects resulting from poor application or failure to properly prepare the surface to be roofed over, or failure to provide proper ventilation in accordance with minimum property standards requirements. Review all applicable building codes, minimum property standards, and requirements prior to applying these products using the application instructions. Use caution when stacking products on sloped roofs.

STEP 1: PREPARE THE ROOF DECK: Deck must be smooth, firm, clean, dry and securely nailed. Wood panel decking is to be exterior grade, conforming to building code requirements. Panels are to be 3/8” (9.5 mm) min. thick plywood, or 7/16” (11 mm) min. thick non-veneer. The installation of this product on dimensional lumber (including shiplap/board decks) is not recommended as it may potentially cause buckling problems, and may not be covered by the applicable Asphalt Shingle Limited Warranty.

STEP 2: APPLY DRIP EDGE ALONG EAVES: Apply metal drip edge directly to the deck along the eaves, spacing nails approximately 12” (305 mm) apart.

STEP 3: EAVE PROTECTION: Apply IKO’s GoldShield Ice & Water Protector, as per building code requirements and these instructions, overhanging eaves by 1/4” (6.35 mm) to 3/4” (19 mm) and extending up the roof at least 24” (610 mm) from the vertical projection of the interior surface of the outside wall.

STEP 4: Cut the membrane into 10’ to 15’ (3 m to 4.5 m) lengths and reroll.

STEP 5: Carefully slit the release paper on a 45° angle as shown in the diagram. DO NOT CUT THROUGH THE MEMBRANE. Remove the slit corner of the release paper exposing the adhesive backing. This corner will be used to hold the material in place as you begin installation.

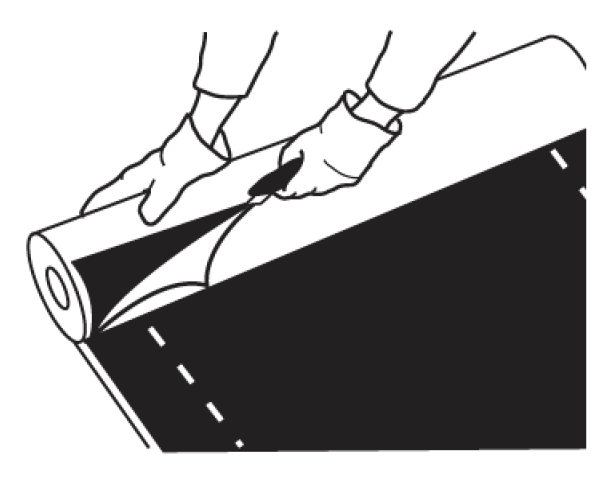

STEP 6: Carefully slit the release paper at the top of the roll as shown in the diagram. DO NOT CUT THROUGH THE MEMBRANE.

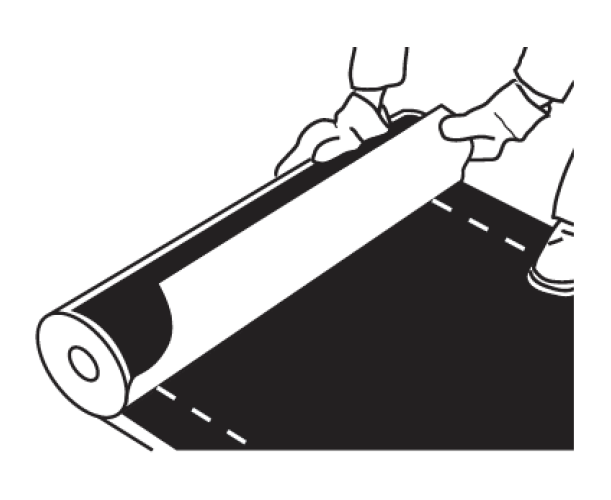

STEP 7: Peel back approximately 6” (15 cm) of the release paper to expose the adhesive. Peel the release paper in the opposite direction that you are applying the membrane.

STEP 8: Pull the release paper in the direction that you are applying the membrane, applying pressure to the membrane as you proceed. Avoid any wrinkles. The membrane will adhere to the deck.

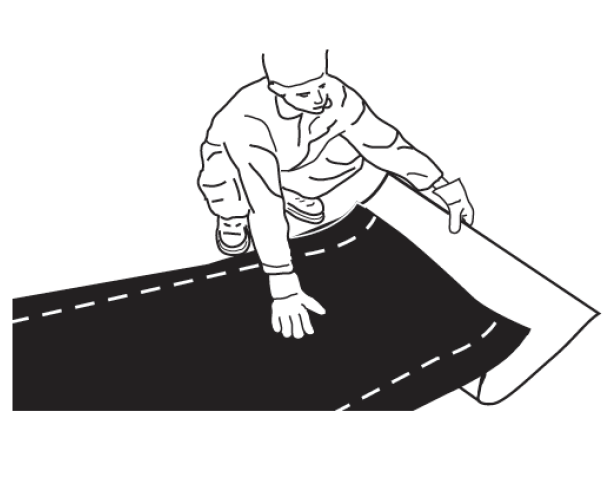

STEP 9: Once you have finished laying the membrane, go back to the beginning of the roll, and pull off the release paper at that end.

STEP 10: Unroll the next piece of material ensuring that there is an overlap of 6” (152 mm). Do not remove release paper at this time. Unroll 3’-6’ (1-2 m) of membrane. Repeat Steps 5 – 9.

If two courses are required, the top course should overlap the lower course to the lap line.

STEP 11: End laps must be at least 6” (152 cm) and rolled to ensure adhesion and should be located at least 24” (61 cm) from those in the previous course.

For Low-Sloped Roof Areas:
Cover entire area with GoldShield Premium Ice & Water Protector, lapped as outlined above, and then apply shingles as per normal shingle exposure.

Valleys and Ridges
• Cut the membrane into 4’ (1.2 m) to 6’ (1.8 m) lengths. In the valley, start at the low point and work upwards, overlapping each sheet at least 6” (15 cm). Peel off the release paper and center the sheet over the valley or ridge. Drape and press in place working from the center outward toward the edges.
• Membranes must not be left exposed in an open valley

Ice Dam Protection
• Membrane must be applied to reach above the highest expected level of ice dams, and at least 24” (61 cm) up the roof from the vertical projection of the interior surface of the outside wall.

Drip Edge
• Drip edge must be located over the membrane at rake edges.

GoldShieldMC de IKO® | Directives de pose

Know someone who would be interested in this? Let us know and we'll send them details about this page.
*
*
*
Please complete all fields.
Cancel

Send

Thank you! We'll let them know where to find this page.

Okay
MESSAGE IMPORTANT • À LIRE: NOTE: les produits doivent être installés correctement car ils ne sont conçus que pour ces applications. Nous déclinons toute responsabilité relativement aux infiltrations ou aux problèmes résultant de l’installation inadéquate du produit, D’une négligence durant la préparation de la surface à couvrir ou du non-respect des exigences des normes minimales en matière de biens immobiliers (minimum property standards) relatives à la ventilation. Avant d’installer ces bardeaux selon les instructions figurant sur l’emballage, consulter tous les codes du bâtiment pertinents ainsi que les normes minimales en matière de biens immobiliers. Soyez vigilants lorsque vous empilez les paquets de bardeau sur un toit en pente.

ÉTAPE 1 : PRÉPARATION DU PLATELAGE : Le platelage doit être lisse, ferme, propre, sec et cloué sécuritairement. Les panneaux de bois le constituant doivent être conçus pour une application extérieure, conformément aux exigences du code du bâtiment. L’épaisseur minimale est de 9,5 mm (3/8 po) pour le contreplaqué, et de 11 mm (7/16 po) pour les panneaux de copeaux orientés. La pose de ce produit sur un support en bois de construction (incluant la planche et la planche à feuillure) n’est pas recommandée, car elle peut entraîner un problème de gondolement, non couvert par la garantie limitée applicable aux bardeaux d’asphalte.

ÉTAPE 2 : LARMIER LE LONG DE L’AVANT-TOIT : Le long de l’avant-toit, installez les larmiers directement sur le platelage en espaçant les clous d’environ 305 mm (12 po).

ÉTAPE 3 : PROTECTION DE L’AVANT-TOIT : Appliquez une protection d’avant-toit comme le Protecteur contre la glace et l’eau IKO StormShield®, en respectant les exigences du code du bâtiment ainsi que les directives de pose du fabricant. Le protecteur doit déborder de l’avant-toit de 6.35 mm à 19 mm (1/4 à 3/4 po) et remonter sur le toit jusqu’à au moins 610 mm (24 po) au-delà de la paroi intérieure du mur.

ÉTAPE 4 : Coupez la membrane en bandes de 3 m à 4,5 m (10 à 15 pi) et enroulez-les.

ÉTAPE 5 : Coupez soigneusement le coin de la pellicule de protection à 45 degrés, tel qu’illustré. ATTENTION DE NE PAS COUPER LA MEMBRANE. Retirez la pellicule pour exposer l’adhésif de ce coin, qui tiendra le matériau en place pour commencer l’installation.

ÉTAPE 6 : Soigneusement, entaillez la pellicule sur le dessus du rouleau, tel qu’illustré. ATTENTION DE NE PAS COUPER LA MEMBRANE.

ÉTAPE 7 : Pelez environ 15 cm (6 po) de la pellicule afin d’exposer l’adhésif. Pelez dans le sens opposé au déroulement de la membrane.

ÉTAPE 8 : Tirez sur la pellicule protectrice dans la même direction que le déroulement de la membrane, en pressant cette dernière sur le platelage pour qu’elle y adhère. Évitez de former des plis.

ÉTAPE 9 : Une fois la membrane en place, retournez au début de la bande pour retirer la section de pellicule restante.

ÉTAPE 10 : Déroulez la bande suivante en la faisant chevaucher la première sur 152 mm (6 po). Ne retirez pas la pellicule tout de suite. Déroulez la membrane sur 1 à 2 m (3 à 6 pi), puis répétez les étapes 5 à 9.

Si deux rangs sont nécessaires, le second doit recouvrir la bande de chevauchement du premier.

ÉTAPE 11 : Les chevauchements de bouts doivent être d’au moins 15 cm (6 po), roulés pour en assurer l’adhésion et être éloignés d’au moins 61 cm (24 po) de ceux du rang précédent. ÉTAPE 11 : Les chevauchements de bouts doivent être d’au moins 15 cm (6 po), roulés pour en assurer l’adhésion et être éloignés d’au moins 61 cm (24 po) de ceux du rang précédent.

Sur les zones du toit à faible pente :
Couvrez toute la zone à faible pente de Protecteur contre la glace et l’eau GoldShield, en respectant les chevauchements indiqués ci-dessus. Posez ensuite les bardeaux avec leur pureau habituel.

Noues et faîtes
• Taillez la membrane en bandes de 1,2 m à 1,8 m (4 à 6 pi) de longueur. À la noue, commencez au point le plus bas du toit et progressez vers le haut, en faisant chevaucher chaque bande d’au moins 15 cm (6 po) sur la précédente. Retirez la pellicule protectrice et centrez la feuille sur la noue ou le faîte. Couvrez et pressez en place à partir du centre vers l’extérieur.

• La membrane ne doit pas être laissée exposée sur une noue ouverte.

Protection contre les digues de glace
• La membrane doit être posée de manière à couvrir une section plus large que celle où risque de se former une digue de glace, et s’étendant au moins 61 cm (24 po) au-delà de la face intérieure du mur extérieur.

Larmiers
• Les larmiers doivent être situés sous la membrane aux avant-toits et par-dessus la membrane aux rives.

IKO® GoldShieldTM | Instrucciones de Colocación

Know someone who would be interested in this? Let us know and we'll send them details about this page.
*
*
*
Please complete all fields.
Cancel

Send

Thank you! We'll let them know where to find this page.

Okay
MENSAJE IMPORTANTE • ¡LÉALO! NOTA: Los productos deberán instalarse correctamente. IKO no acepta ninguna responsabilidad por goteras o por defectos que resulten de una instalación defectuosa o debido a una preparación deficiente de la superficie que se va a recubrir, o el no proporcionar ventilación adecuada, según los estándares residenciales mínimos pertinentes. Revise todas las normas de construcción, estándares residenciales mínimos y los requisitos antes de instalar estas tejas siguiendo las instrucciones de instalación que aparecen en la envoltura. Tenga precaución cuando apile los paquetes en techos con pendiente.

PASO 1: PREPARE LA PLATAFORMA DEL TECHO: La plataforma debe estar lisa, firme, limpia, seca y clavada firmemente. La plataforma con paneles de madera debe ser del grado para exterior, conforme a los requisitos del código de construcción. Los paneles deben ser de madera contrachapada gruesa de 9.5 mm (3/8 pulgada) como mínimo o de otro material grueso no laminado de 11 mm (7/16 pulgada) como mínimo. No se recomienda la instalación de tejas asfálticas en madera dimensional (incluidas tablas superpuestas/plataformas de tablas), dado que posiblemente puede causar problemas de pandeo, que podrían no estar cubiertas por la Garantía Limitada aplicable de las tejas.

PASO 2: APLIQUE MOLDURA ANTIGOTEO EN LOS ALEROS: Aplique molduras antigoteo de metal directamente sobre la plataforma y los aleros, con un espacio de 30.5 cm (12 pulgadas) aproximadamente entre cada clavo.

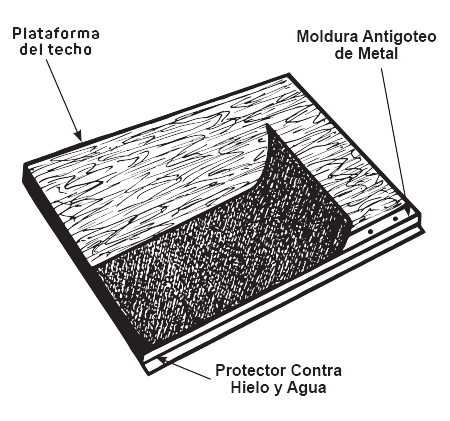

PASO 3: PROTECCIÓN DEL ALERO: Aplique el protector contra hielo y agua GoldShield, según los requisitos del código de construcción y estas instrucciones, de modo que sobresalga de los aleros entre 6.35 mm y 19 mm (1/4 pulgada y 3/4 pulgada) y se eleve con una altura sobre el techo de al menos 61 cm (24 pulgadas) más allá de la línea de la pared interior.

PASO 4: Corte la membrana en trozos entre 3 y 4.5 m (10 y 15 pies) y enróllela.

PASO 5: Corte cuidadosamente el papel protector en ángulo 45° según se muestra en el diagrama. NO CORTE A TRAVÉS LA MEMBRANA. Remueva la esquina del corte del papel protector exponiendo el adhesivo. Este extremo se utilizará para mantener el material en su lugar cuando comience con la instalación.

PASO 6: Corte cuidadosamente el papel protector en la parte superior del rollo como se muestra en el diagrama. NO CORTE LA MEMBRANA.

PASO 7: Retire aproximadamente 15 cm (6 pulgadas) del papel protector para exponer el adhesivo. Retire el papel extraíble en la dirección opuesta a la que está aplicando la membrana.

PASO 8: Tire del papel protector en la dirección en la que está aplicando la membrana y ejerza presión sobre la membrana a medida que lo hace. Evite todas las arrugas. La membrana se adherirá a la plataforma.

PASO 9: Una vez que haya terminado de poner la membrana, regrese al principio del rollo y retire el papel protector en ese extremo.

PASO 10: Desenrolle la siguiente pieza de material asegurándose que haya un traslape de al menos 15 cm (6 pulgadas), No remueva la película protectora en este momento. Desenrolle de 1 a 2 m (3 a 5 pies) de la membrana. Repita los pasos del 5 al 9.

Si se necesitan dos hileras, la hilera superior debe superponerse sobre la línea de la orilla de la hilera inferior.

PASO 11: Los solapes deben tener al menos 15 cm (6 pulgadas), estar enrollados para garantizar la adhesión y encontrarse al menos a 61 cm (24 pulgadas) de los de la hilera anterior. Para áreas de techos con poca inclinación Cubra toda el área con el protector de hielo y agua GoldShield Premium, solapado como se detalló anteriormente, y, a continuación, instale las tejas según las exposiciones normales de las mismas.

Vértices y cumbreras
• Corte la membrana en trozos con una longitud de entre 1.2 y 1.8 m (4 y 6 pies). En el vértice, comience en el punto inferior y avance hacia arriba, superponiendo cada lámina al menos 15 cm (6 pulgadas). Retire el papel protector y centre la lámina sobre el vértice o la cumbrera. Cubra y presione desde el centro hacia afuera, en dirección de los bordes.

• Las membranas no deben quedar expuestas en un vértice abierto.

Protección contra la acumulación de hielo
• La membrana debe aplicarse de modo que sobrepase el nivel más alto esperado de acumulación de hielo y al menos a 61 cm (24 pulgadas) sobre el techo, desde la proyección vertical de la superficie interna de la pared exterior.

Moldura antigoteo
• Las molduras antigoteo deben colocarse por debajo de la membrana en los alerones, y por encima de la membrana en los bordes a dos aguas.

IKO® ਗੋਲਡਸ਼ੀਲਡTM ਆਈਸ ਐਂਡ ਵਾਟਰ ਪ੍ਰੋਟੈਕਟਰ | ਲਾਉਣ ਬਾਰੇ ਹਿਦਾਇਤਾਂ

Know someone who would be interested in this? Let us know and we'll send them details about this page.
*
*
*
Please complete all fields.
Cancel

Send

Thank you! We'll let them know where to find this page.

Okay
ਮਹੱਤਵਪੂਰਨ ਸੰਦੇਸ਼ • ਕਿਰਪਾ ਕਰਕੇ ਪੜ੍ਹੋ!
ਨੋਟ: ਉਤਪਾਦਾਂ ਨੂੰ ਲਾਜ਼ਮੀ ਤੌਰ ’ਤੇ ਉਚਿਤ ਤਰੀਕੇ ਨਾਲ ਲਗਾਇਆ ਜਾਣਾ ਚਾਹੀਦਾ ਹੈ। ਗਲਤ ਉਪਯੋਗ ਜਾਂ ਜਿਸ ਸਤਹ ’ਤੇ ਛੱਤ ਪਾਈ ਜਾਣੀ ਹੈ ਉਸਨੂੰ ਉਚਿਤ ਤਰੀਕੇ ਨਾਲ ਤਿਆਰ ਕਰਨ ਵਿੱਚ ਫੇਲ੍ਹ ਹੋਣ, ਜਾਂ ਜਾਇਦਾਦ ਲਈ ਘੱਟੋ-ਘੱਟ ਮਿਆਰੀ ਲੋੜਾਂ ਅਨੁਸਾਰ ਉਚਿਤ ਹਵਾਦਾਰੀ ਪ੍ਰਦਾਨ ਕਰਾਉਣ ਵਿੱਚ ਫੇਲ੍ਹ ਹੋਣ ਦੀ ਵਜਹ ਕਰਕੇ ਹੋਣ ਵਾਲੀਆਂ ਲੀਕਾਂ ਅਤੇ ਨੁਕਸਾਂ ਵਾਸਤੇ, IKO ਕੋਈ ਜ਼ਿੰਮੇਵਾਰੀ ਨਹੀਂ ਲੈਂਦੀ। ਇਸ ਰੈਪਰ ’ਤੇ ਦਿੱਤੀਆਂ ਉਪਯੋਗ ਸਬੰਧੀ ਹਿਦਾਇਤਾਂ ਦੀ ਵਰਤੋਂ ਕਰਦੇ ਹੋਏ ਇਹਨਾਂ ਉਤਪਾਦਾਂ ਨੂੰ ਉਪਯੋਗ ਵਿੱਚ ਲਿਆਉਣ ਤੋਂ ਪਹਿਲਾਂ, ਲਾਗੂ ਹੋਣ ਵਾਲੇ ਸਾਰੇ ਨਿਰਮਾਣ ਜ਼ਾਬਤਿਆਂ, ਜਾਇਦਾਦ ਦੇ ਘੱਟੋ-ਘੱਟ ਮਿਆਰਾਂ, ਅਤੇ ਲੋੜਾਂ ਦੀ ਸਮੀਖਿਆ ਕਰੋ। ਢਲਾਣਦਾਰ ਛੱਤਾਂ ’ਤੇ ਉਤਪਾਦ ਦੀ ਧਾਂਕ ਲਾਕੇ ਰੱਖਣ ਸਮੇਂ ਸਾਵਧਾਨੀ ਵਰਤੋ।

ਕਦਮ 1: ਛੱਤ ਦੇ ਡੈੱਕ ਨੂੰ ਤਿਆਰ ਕਰੋ: ਡੈੱਕ ਲਾਜ਼ਮੀ ਤੌਰ ’ਤੇ ਇਕਸਾਰ, ਮਜ਼ਬੂਤ, ਸਾਫ਼, ਖੁਸ਼ਕ ਹੋਣਾ ਚਾਹੀਦਾ ਹੈ ਅਤੇ ਮੇਖਾਂ ਚੰਗੀ ਤਰ੍ਹਾਂ ਲੱਗੀਆਂ ਹੋਣੀਆਂ ਚਾਹੀਦੀਆਂ ਹਨ। ਲੱਕੜੀ ਦੇ ਪੈਨਲ ਦਾ ਡੈੱਕ ਬਾਹਰੀ ਪਾਸੇ ਦੇ ਗਰੇਡ ਦਾ ਹੋਣਾ ਚਾਹੀਦਾ ਹੈ, ਅਤੇ ਇਹ ਨਿਰਮਾਣ ਜ਼ਾਬਤੇ ਦੀਆਂ ਲੋੜਾਂ ਦੇ ਅਨੁਸਾਰ ਹੋਵੇ। ਪੈਨਲ ਘੱਟੋ ਘੱਟ 3/8” (9.5 ਮਿ.ਮੀ.) ਮੋਟੀ ਪਲਾਈਵੁੱਡ, ਜਾਂ ਘੱਟੋ ਘੱਟ 7/16” (11 ਮਿ.ਮੀ.) ਮੋਟੇ ਨਾਨ-ਵੀਨੀਰ ਦੇ ਬਣੇ ਹੋਣ। ਇਸ ਉਤਪਾਦ ਦੀ ਡਾਇਮੈਨਸ਼ਨਲ ਲੰਬਰ ਉੱਤੇ ਸਥਾਪਨਾ (ਜਿਸ ਵਿੱਚ ਸ਼ਿਪਲੈਪ/ਬੋਰਡ ਡੈੱਕ ਵੀ ਸ਼ਾਮਲ ਹਨ) ਦੀ ਸਿਫਾਰਸ਼ ਨਹੀਂ ਕੀਤੀ ਜਾਂਦੀ ਕਿਉਂਕਿ ਸੰਭਵ ਤੌਰ ’ਤੇ ਇਸ ਨਾਲ ਲਿਫਣ ਦੀਆਂ ਸਮੱਸਿਆਵਾਂ ਹੋ ਸਕਦੀਆਂ ਹਨ, ਅਤੇ ਹੋ ਸਕਦਾ ਹੈ ਇਸਨੂੰ ਲਾਗੂ ਹੋਣ ਵਾਲੀ ਐਸਫਾਲਟ ਸ਼ਿੰਗਲ ਦੀ ਸੀਮਤ ਵਰੰਟੀ ਦੁਆਰਾ ਕਵਰ ਨਾ ਕੀਤਾ ਜਾਂਦਾ ਹੋਵੇ।

ਕਦਮ 2: ਈਵਾਂ (EAVES) ਦੇ ਨਾਲ-ਨਾਲ ਡ੍ਰਿੱਪ ਕਿਨਾਰਾ (Drip Edge) ਲਗਾਓ: ਈਵਾਂ ਦੇ ਨਾਲ-ਨਾਲ ਧਾਤੂ ਦੇ ਬਣੇ ਡ੍ਰਿੱਪ ਕਿਨਾਰੇ ਸਿੱਧੇ ਤੌਰ ’ਤੇ ਡੈੱਕ ਉੱਤੇ ਲਗਾਓ, ਮੇਖਾਂ ਵਿਚਕਾਰ ਵਿੱਥ ਲਗਭਗ 12”(305 ਮਿ.ਮੀ.) ਹੋਵੇ।

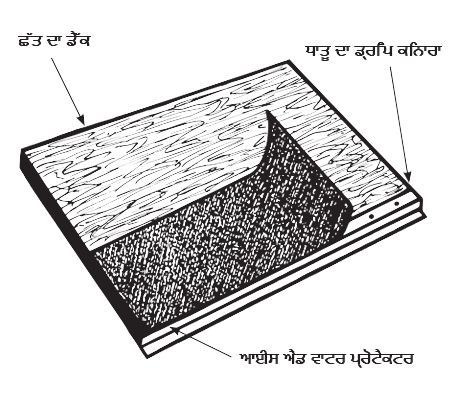

ਕਦਮ 3: ਈਵ ਸੁਰੱਖਿਆ: ਈਵਾਂ ਨੂੰ 1/4” (6.35 ਮਿ.ਮੀ.) ਤੋਂ ਲੈਕੇ 3/4” (19 ਮਿ.ਮੀ.) ਤੱਕ ਓਵਰਹੈਂਗ ਕਰਦੇ ਹੋਏ ਅਤੇ ਬਾਹਰੀ ਕੰਧ ਦੀ ਅੰਦਰੂਨੀ ਸਤਹ ਦੇ ਖੜ੍ਹੇ ਦਾਅ ਪ੍ਰੋਜੈਕਸ਼ਨ ਤੋਂ ਛੱਤ ਦੇ ਉੱਪਰ ਵੱਲ ਘੱਟੋ-ਘੱਟ 24”(610 ਮਿ.ਮੀ.) ਤੱਕ ਵਧਾਉਂਦੇ ਹੋਏ, ਨਿਰਮਾਣ ਜ਼ਾਬਤੇ ਦੀਆਂ ਲੋੜਾਂ ਅਤੇ ਇਹਨਾਂ ਹਿਦਾਇਤਾਂ ਅਨੁਸਾਰ IKO ਦੀ ਗੋਲਡਸ਼ੀਲਡ ਆਈਸ ਐਂਡ ਵਾਟਰ ਪ੍ਰੋਟੈਕਟਰ ਲਗਾਓ।

ਕਦਮ 4: ਝਿੱਲੀ (membrane) ਨੂੰ 10’ ਤੋਂ 15’ (3 ਮੀ. ਤੋਂ 4.5 ਮੀ.) ਤੱਕ ਦੀਆਂ ਲੰਬਾਈਆਂ ਵਿੱਚ ਕੱਟੋ ਅਤੇ ਦੁਬਾਰਾ-ਰੋਲ ਕਰੋ।

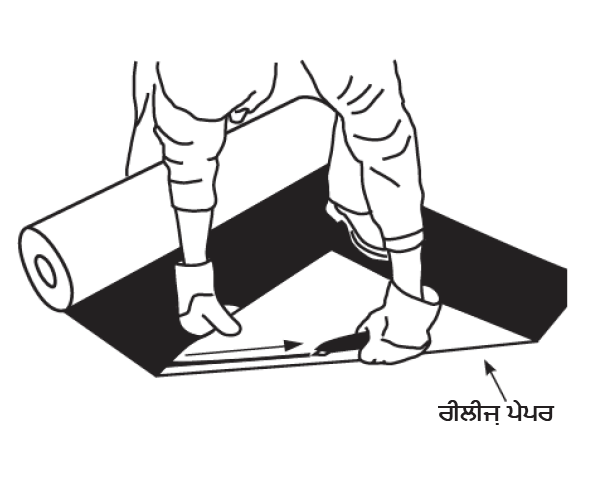

ਕਦਮ 5: ਰਿਲੀਜ਼ ਪੇਪਰ ਨੂੰ ਧਿਆਨ ਨਾਲ 45° ਦੇ ਕੋਣ ’ਤੇ ਕੱਟੋ ਜਿਵੇਂ ਕਿ ਚਿਤਰ ਵਿੱਚ ਦਿਖਾਇਆ ਗਿਆ ਹੈ। ਝਿੱਲੀ ਦੇ ਵਿੱਚੋਂ ਨਾ ਕੱਟੋ। ਲੇਸਦਾਰ ਪਿਛਲੇ ਪਾਸੇ ਨੂੰ ਨੰਗਾ ਕਰਦਾ ਹੋਏ ਰਿਲੀਜ਼ ਪੇਪਰ ਦੇ ਕੱਟੇ ਹੋਏ ਕੋਨੇ ਨੂੰ ਉਤਾਰ ਦਿਓ। ਜਦ ਤੁਸੀਂ ਸਥਾਪਨਾ ਨੂੰ ਸ਼ੁਰੂ ਕਰਦੇ ਹੋ ਤਾਂ ਇਸ ਕੋਨੇ ਨੂੰ ਮਟੀਰੀਅਲ ਥਾਂ ਸਿਰ ਰੱਖਣ ਲਈ ਵਰਤਿਆ ਜਾਵੇਗਾ।
