Armourshake Designer Shingles
Armourshake Designer Shingles
Finally, a shingle that meets all your expectations. IKO® ArmourshakeTM shingles offer exceptional design with dimensional thickness, and heavyweight construction. Right from the edge, our specially designed starter shingle, Armour StarterTM, helps bring out Armourshake’s luxurious profile. But deeper than their elegant look, these shingles also boast ultimate performance with a Class 3* impact resistance rating, helping protect against wind, water, and extreme temperatures. Or, opt for a Class 4* impact rating (in Shadow Black only). Either impact rating could possibly reduce your home’s insurance premium.
Color / Finish:
Finally, a shingle that meets all your expectations. IKO® ArmourshakeTM shingles offer exceptional design with dimensional thickness, and heavyweight construction. Right from the edge, our specially designed starter shingle, Armour StarterTM, helps bring out Armourshake’s luxurious profile. But deeper than their elegant look, these shingles also boast ultimate performance with a Class 3* impact resistance rating, helping protect against wind, water, and extreme temperatures. Or, opt for a Class 4* impact rating (in Shadow Black only). Either impact rating could possibly reduce your home’s insurance premium.
The Performance Designer Collection
There’s no need to compromise protection for beauty. IKO’s Performance Designer line is built for quality and class in three amazing shingles. Whether you’re boosting curb appeal or blending with your home’s architectural beauty, IKO’s Crowne Slate, Armourshake, and Royal Estate lines offer performance and polish with the assurance of Impact Resistance*.
Specifications & Standards
Standards
-
ASTM D3462 Product Standard
-
ASTM D3018 Product Standard
-
ASTM D3161 Class F Wind Resistance
-
ASTM D7158 Class H Wind Resistance
-
ASTM E108/UL 790 Class A Fire Resistance3
-
CAN/ULC S107 Class A Fire Resistance (Canada)3
-
CSA A123.5 Product Standard (Canada)
-
FM 4473/UL 2218 Class 3 Impact Resistance4
-
FM 4473/UL 2218 Class 4 Impact Resistance4
-
Miami-Dade County Product Approval5
-
Florida Building Code High-Velocity Hurricane Zone (HVHZ) Approval5
Specifications
-
Dimensions (LxW)
37 3/8 inches x 18 11/16 inches (950 mm x 475 mm)
-
Exposure
5 1/2 in (140 mm)
-
Coverage per Bundle
20 sq. ft. (1.86 sq.m)
-
Bundles per Pallet
(Class 3) 45 / (Class 4) 36
-
Shingles per Square
70
-
Shingles per Bundle
14
-
Limited Warranty
Limited Lifetime1
-
Iron Clad® Protection
15 Years1
-
Limited Wind Warranty
110 mph (177 km/h)1
-
Limited High Wind Warranty Upgrade
130 mph (210 km/h)1, 2
-
Limited Algae Resistance Warranty
10 years (blue-green)1
1. See Limited Warranty for complete terms, conditions, restrictions and application requirements. Please note that extended warranties which may be available to you through an IKO ROOFPRO® contractor may have different application requirements. Be sure to ask your roofer or IKO for details. “Lifetime” means the period of time commencing on the date of the completion of the installation of the shingles on the building and continuing so long as the owner owns the building on which the shingles were installed.
2. High Wind Application is required.
3. When shingles are installed over an approved underlayment.
4. The Impact Resistance rating is solely for the purpose of enabling residential property owners to obtain a reduction in their residential insurance premium, if available. It is not to be construed as any type of express or implied warranty or guarantee of the impact performance of this shingle by the manufacturer, supplier or installer, and damage from hail is not covered under the Limited Warranty. For further details concerning the FM 4473 standard, visit the FM Approvals website. For the UL 2218 standard, visit the UL Solutions website.
5. Products with Miami-Dade NOA, Florida Product Approval, and Texas Department of Insurance details are available. Miami-Dade & Florida Building Code High-Velocity Hurricane Zone (HVHZ) approvals apply only to shingles available in the southeast US market. For more information, please contact IKO at: 1-888-IKO-ROOF (1-888-456-7663).
Note: All values shown are approximate. Product developed with reference to these standards. IKO strives to accurately reproduce the screen images of the shingle swatches and house photos shown. However, due to manufacturing variances, the limitations of your monitor resolution and the variation in natural exterior lighting, actual colors may vary from the images you see. To ensure complete satisfaction, please make your final color selection from several full-size shingles and view a sample of the product installed on a home.
Documents
Application Instructions for Shingles
Project Profiles
Videos
5,500 Roofing Squares Elevated – Adanac Roofing and Gutters Vancouver IKO Armourshake Project
IKO North America
Design Elevated – IKO’s Designer Shingle Products – IKO
IKO North America

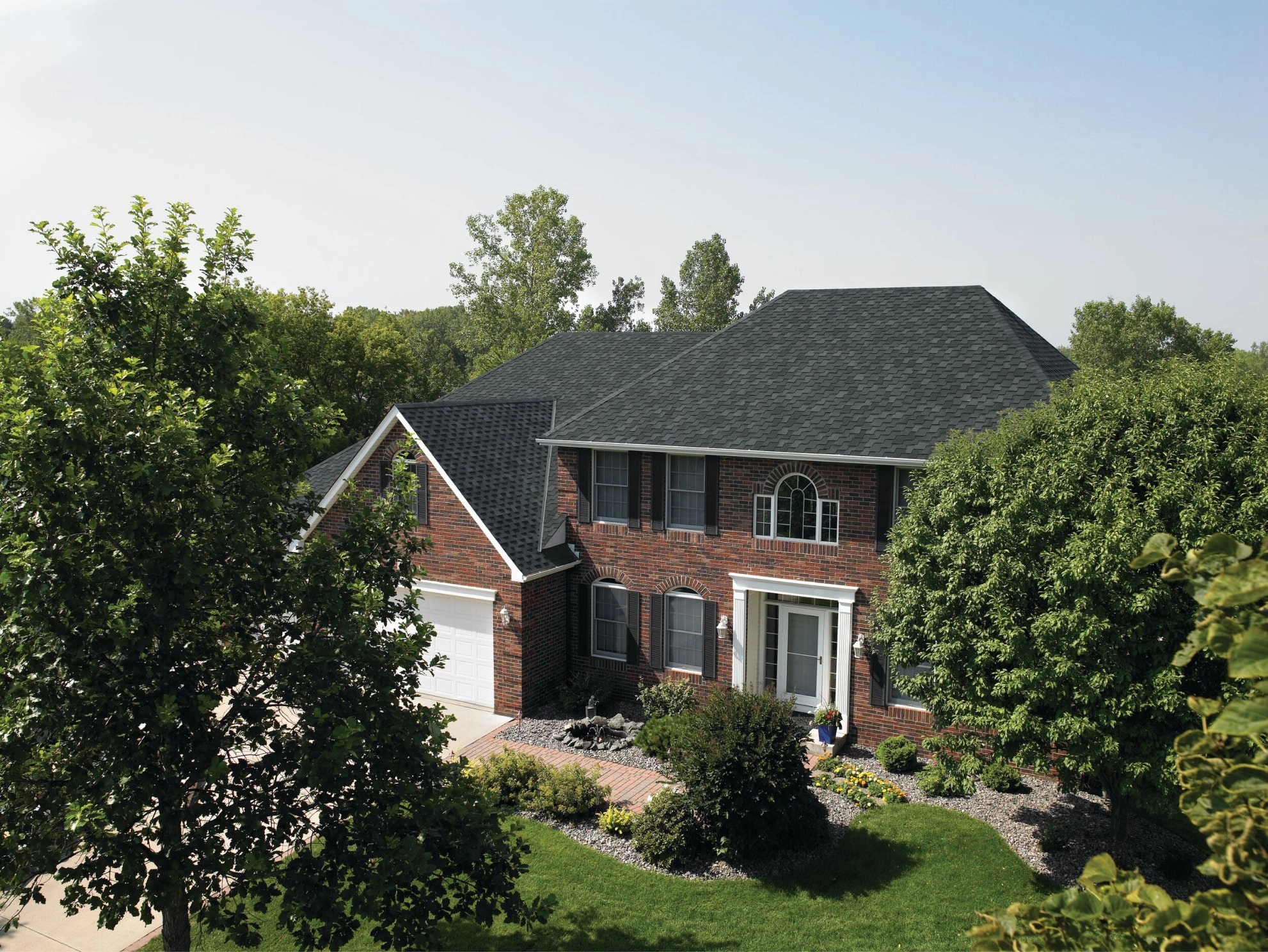

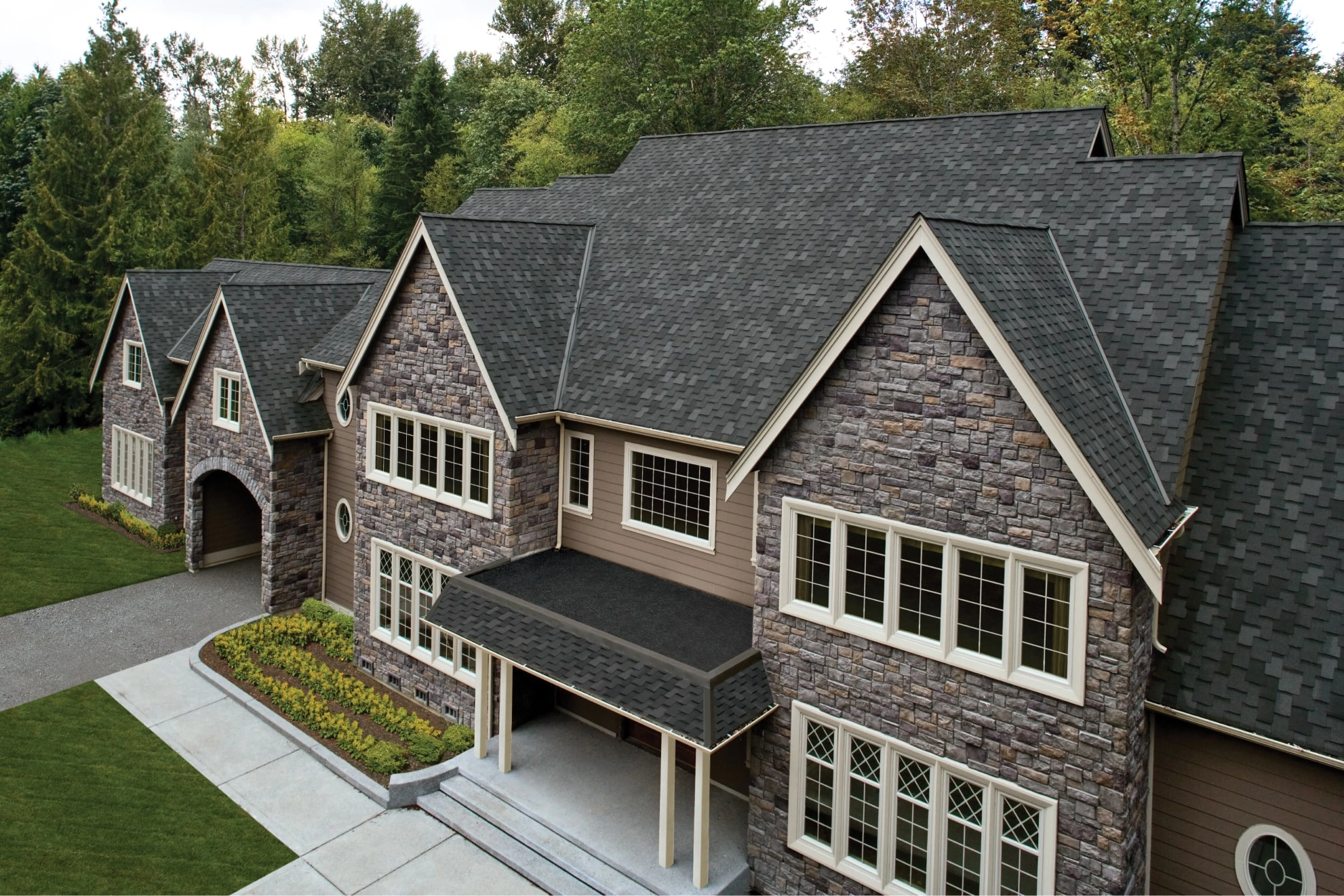

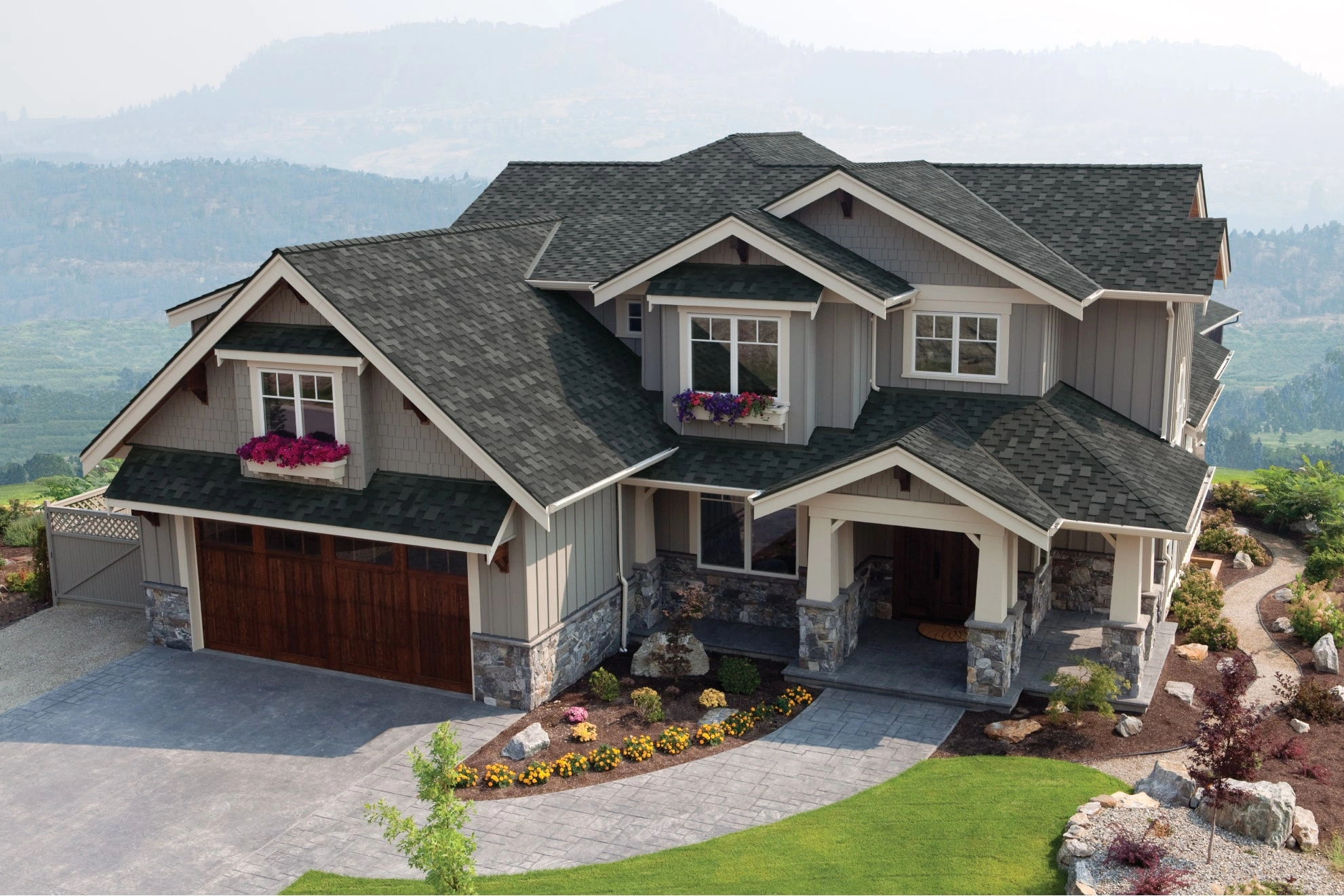

IKO Roof Shingle Colors – Shadow Black | Designer | Armourshake
IKO North America
IKO Roof Shingle Colors – Chalet Wood | Designer | Armourshake
IKO North America

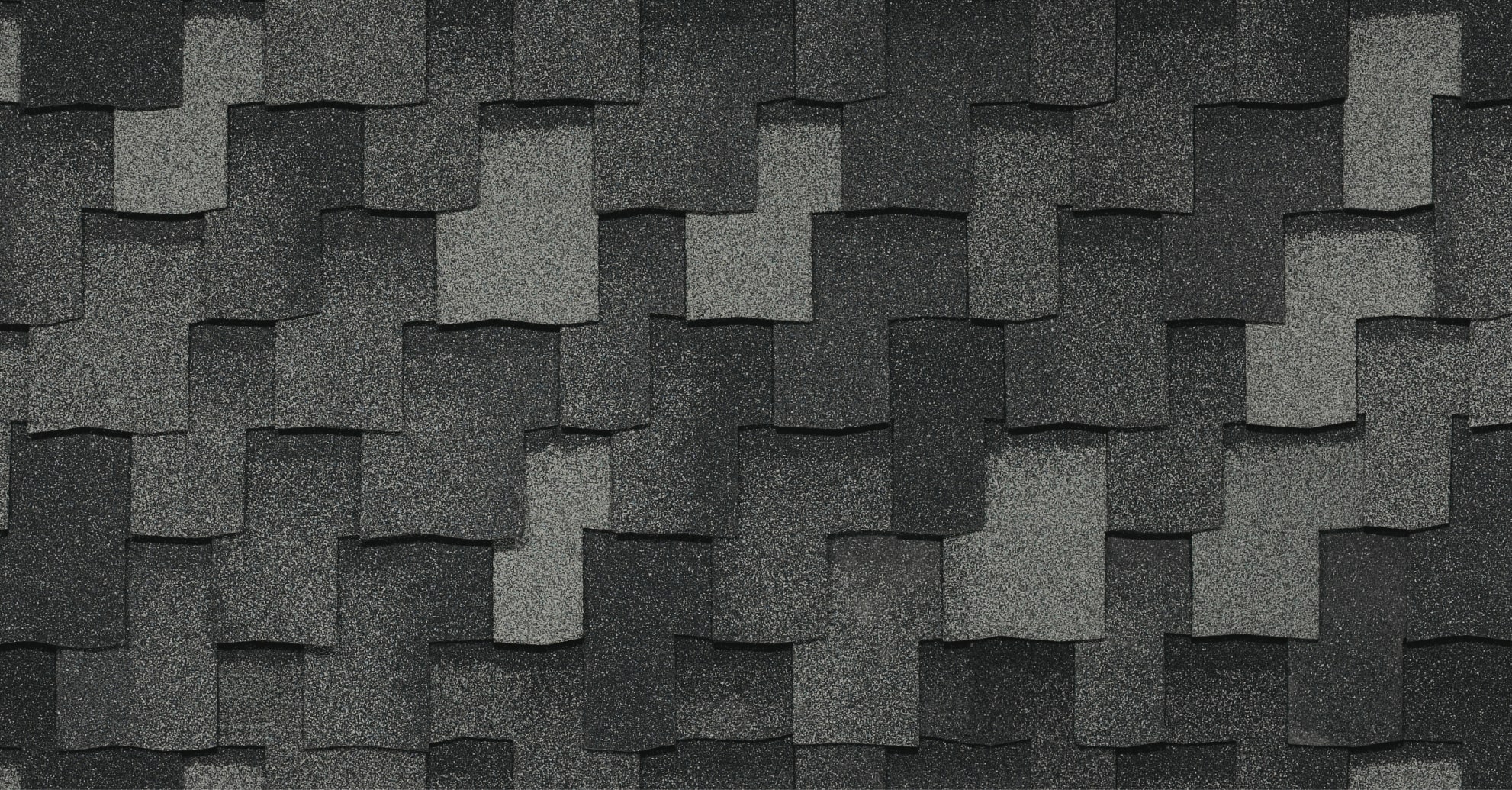

IKO Roof Shingle Colors – Greystone | Designer | Armourshake
IKO North America

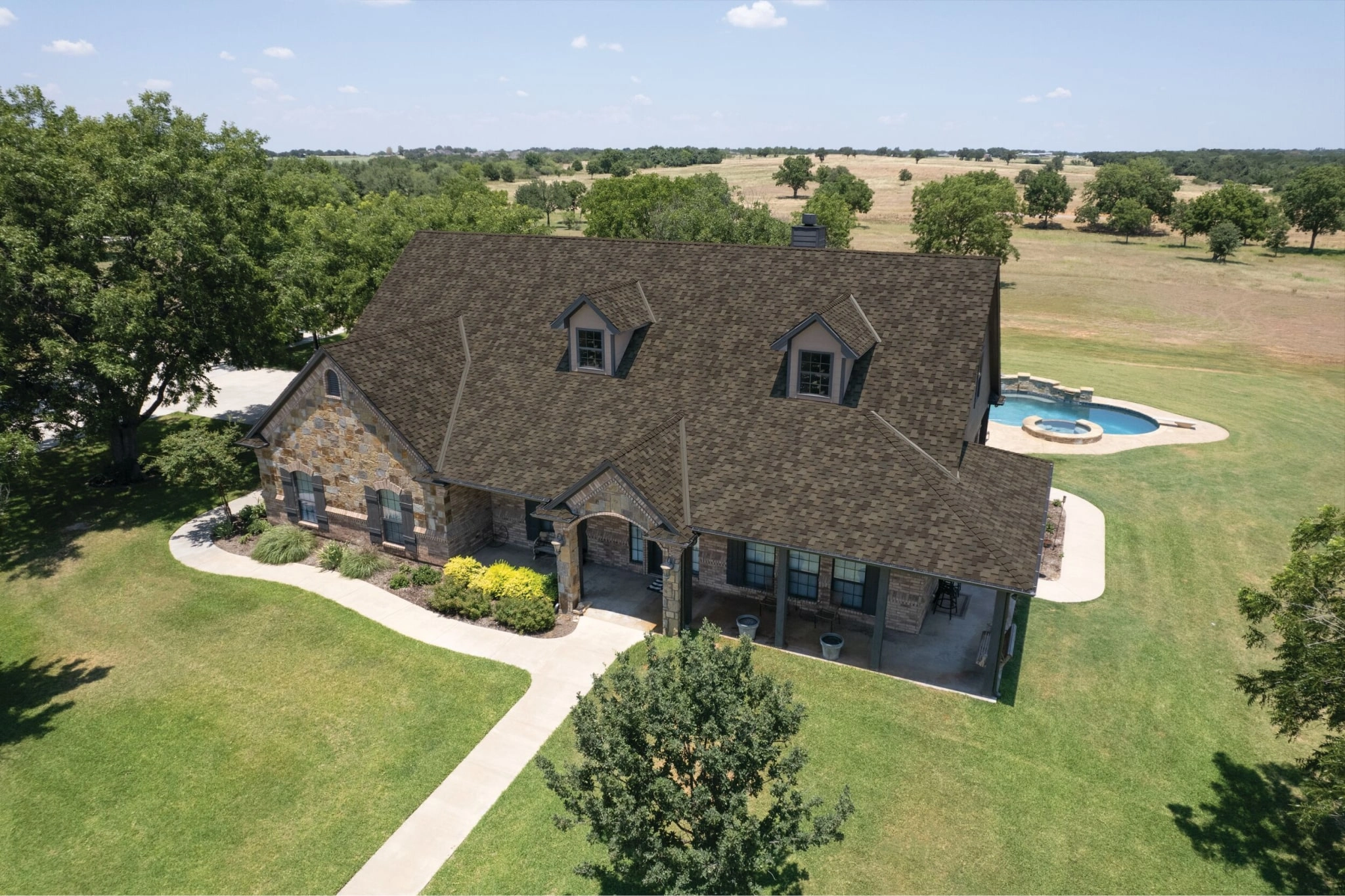

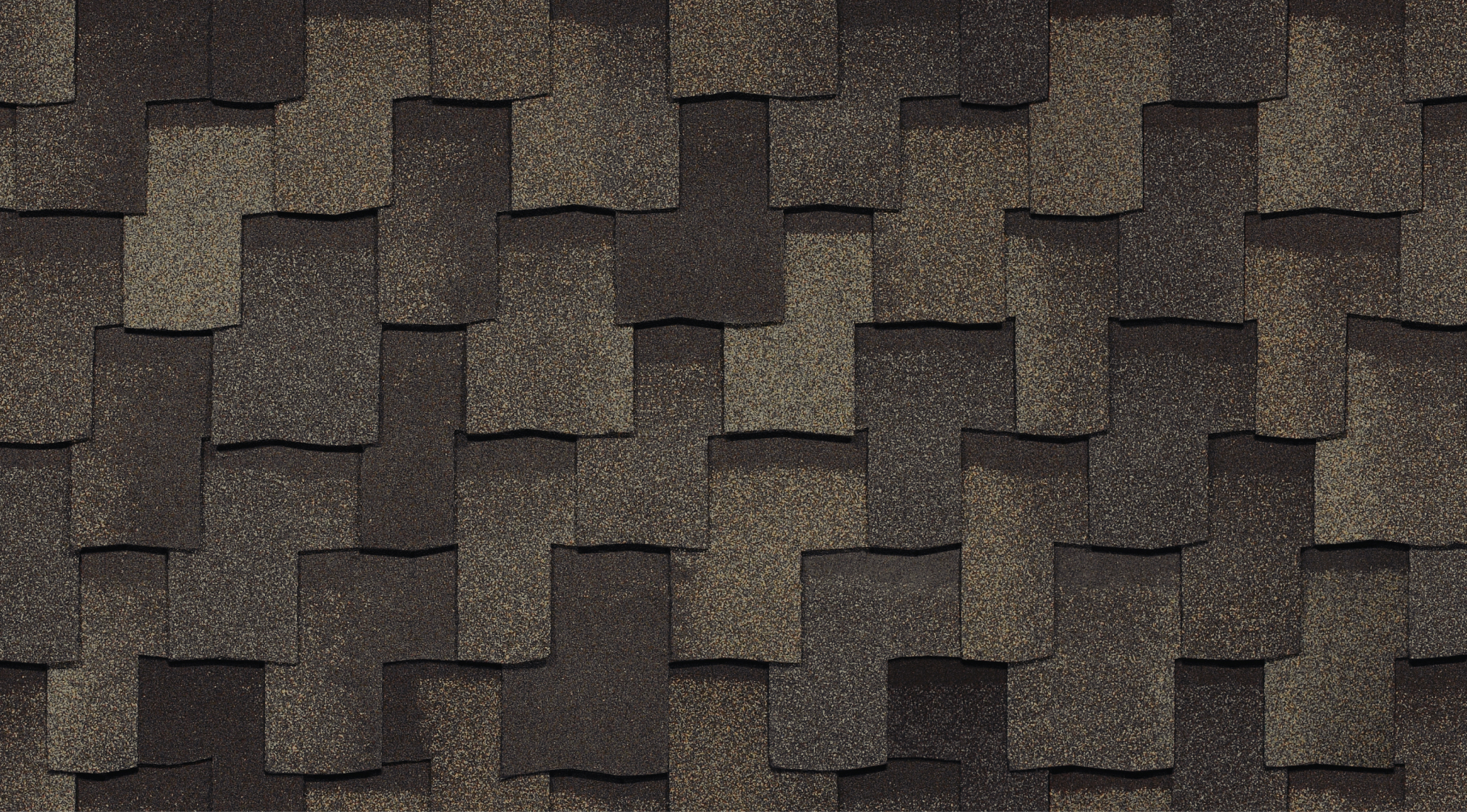

IKO Roof Shingle Colors – Weathered Stone | Designer | Armourshake
